Buy TP-Link TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE (CPE610)

About TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE

Up to 300Mbps on 5GHz wireless data rates
23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance wireless transmission up to 30km
Excellent beam directivity, improved latency and noise cancellation

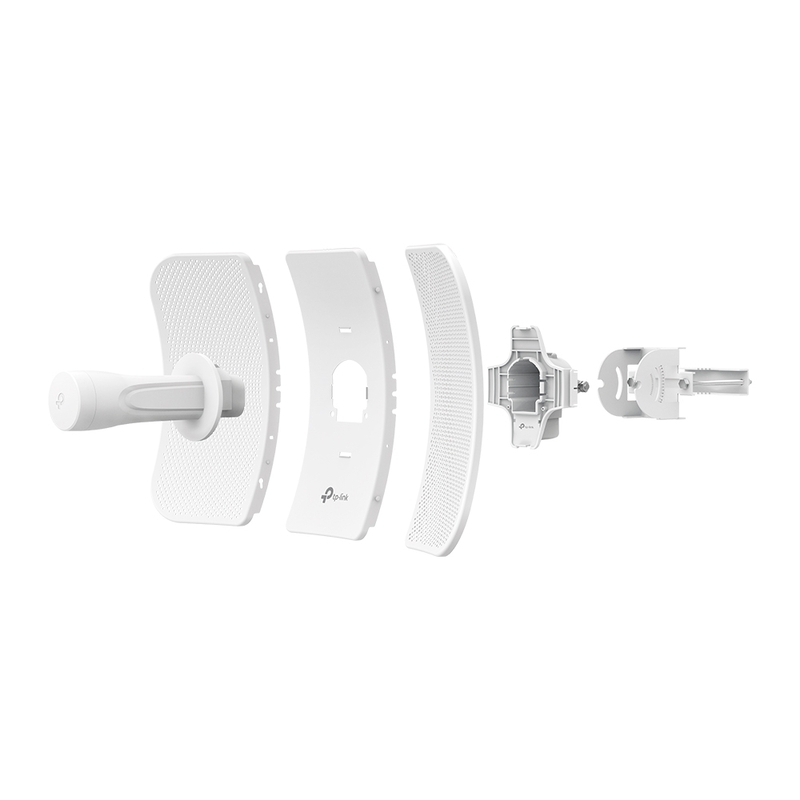

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
Pharos Control gives administrators a free, centralized management system
Passive PoE supports allow flexible deployment and convenient installation

Package contents:

Outdoor Wireless CPE610
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

Hardware Features

Processor: Qualcomm 560MHz CPU, MIPS 74Kc
Memory: 64MB DDR2 RAM,8MB Flash
Interface: 1 10/100Mbps Shielded Ethernet Port (LAN/POE), 1 Reset Button
Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins); Voltage range: 16-27VDC
Power Consumption: 7.41 W

Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Dimensions ( W x D x H 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain: 23dBi
Antenna Beamwidth: 9°(Azimuth), 7°(Elevation)
Protection: 15KV ESD Protection, 6KV Lightning Protection
Enclosure:

Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

Wireless Features

Wireless Standards: IEEE 802.11a/n
Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds:
- Up to 300Mbps (40MHz,Dynamic)
- Up to 144.4Mbps (20MHz,Dynamic)
- Up to 72.21Mbps (10MHz,Dynamic)
- Up to 36.10Mbps (5MHz,Dynamic)

Frequency: 5.15~5.85GHz
Transmit Power Max. 25dBm (Adjustable power by 1dBm)

Software Features

Network Configuration:
- WAN: Static/Dynamic/PPPoE/L2TP/PPTP
- LAN: Static/Dynamic/DHCP
- Forwarding: ALG/UPnP/Virtual Server/Port Trigger
- Security: SPI Firewall/ Ping Forbidden/DoS Protection
- Access Control
- Static Routing
- Bandwidth Control
- IP & MAC Binding

Wireless Configurations:
- Pharos MAXtream TDMA Technology
- Selectable Channel Width: 5/10/20/40MHz
- Auto Channel Selection
- Transmit Power Control
- Dynamic Frequency Selection(DFS)
- WDS Enable/Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP)
- Encryption: 64/128/152-bit WEP Encryption
- SSID Broadcast Enable/Disable
- Multi-SSID with VLAN Tagging(AP Mode only)
- Distance/ACK Timeout Setting
- Wireless MAC Address Filter

- Wireless Advanced:
  - Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM
  - Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management
- Discovery and Remote Management via Pharos Control application
- HTTP/HTTPS Web-based management
- System log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
System Tools:
- Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
- Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications, Hardware watch dog

POE Adapter Features

Dimensions (W x D x H): 85.8×43.9×29.7 mm
Interfaces:
- 1 AC Jack with Earth Ground
- 1 10/100Mbps Shielded Ethernet Port (Power + Data)
- 1 10/100Mbps Shielded Ethernet Port (Data)

Button: Remote Reset Button
Power Status LEDs: Green
Input: 100-240VAC, 50/60Hz
Output: 24VDC, 0.6A Max; +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency: >84.29%
Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Others

Certification: FCC, CE, RoHS, IP65

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
