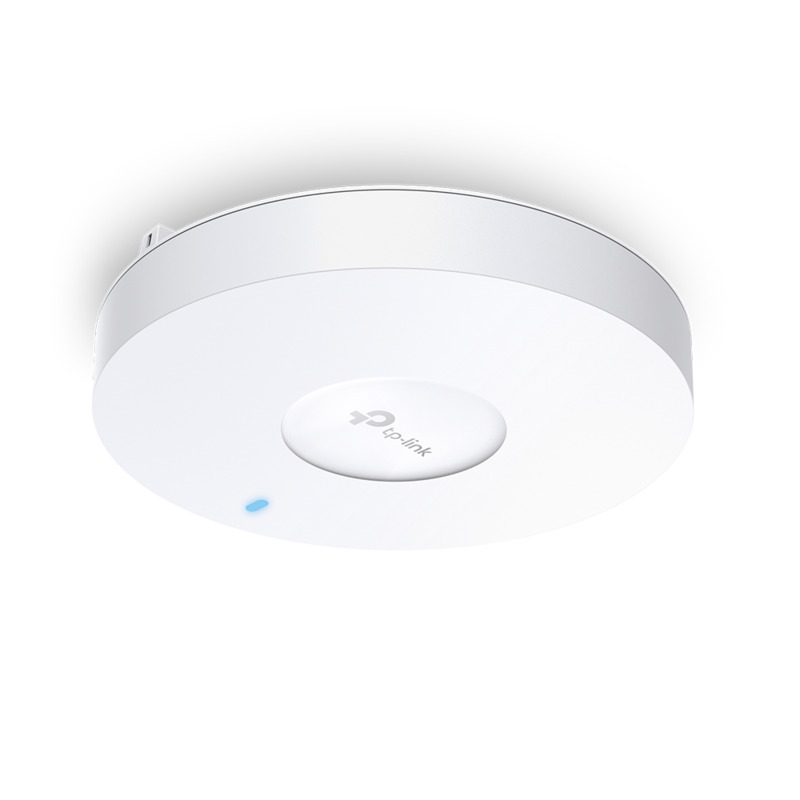

Buy TP-Link TP-Link EAP690E HD AX11000 Ceiling Mount Quad-Band Wi-Fi 6E Access Point (EAP690EHD)

About TP-Link EAP690E HD AX11000 Ceiling Mount Quad-Band Wi-Fi 6E Access Point

AXE11000 Quad-Band WiFi 6: 4× 1201 Mbps (6 GHz) + 4× 600 Mbps (5 GHz_1) + 4× 600 Mbps (5 GHz_2) + 4× 287 Mbps (2.4 GHz)^†
WiFi 6 on 6 GHz Band: Minimal congestion on a new frequency that delivers lightning-fast connections.
High-Density Connectivity up to 2000 Clients: Improves WiFi performance in dense environments with OFDMA, MU-MIMO, and BSS Coloring.^†
10G Wired Connection: Boosts overall throughput with a 10 Gbps Ethernet port supported by an 802.3bt PoE++ power supply.

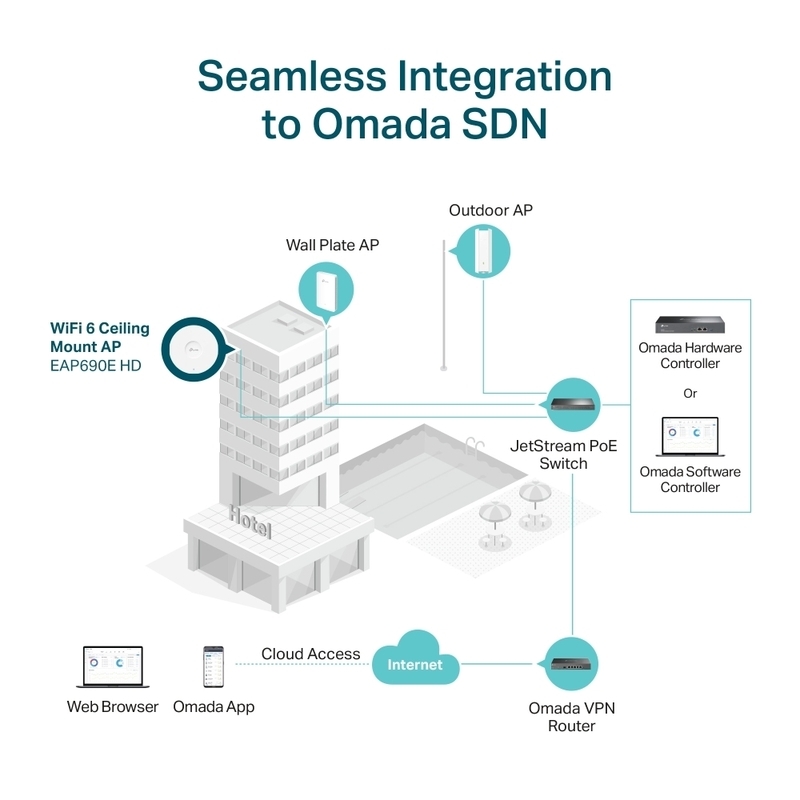

Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.

Package contents:

EAP690E HD
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

Hardware Features

Interface: 1× 10 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3bt PoE++)
Button: Reset
Power Supply: 802.3bt PoE++; 12 V DC
Power Consumption:
- EU: 47W
- US: 51W
Dimensions ( W x D x H ): 11.0 × 11.0 × 2.3 in (280 × 280 × 59.1 mm)
Antenna: Internal Omni
- 2.4 GHz: 4× 4 dBi
- 5 GHz_1: 4× 5 dBi
- 5 GHz_2: 4× 5 dBi
- 6 GHz: 4× 4.5 dBi
Mounting: Ceiling /Wall Mounting (Kits included)

Wireless Features

Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz, 5 GHz. 6GHz
Signal Rate:

6 GHz: 4× 1201 Mbps
5 GHz_1: 4× 600 Mbps
5 GHz_2: 4× 600 Mbps
2.4 GHz: 4× 287 Mbps

Wireless Functions:
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- HE160 (160 MHz Bandwidth)
- Seamless Roaming
- Omada Mesh
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmit Power:
- CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz_1, EIRP)

<30 dBm(5 GHz_2, EIRP)

<23 dBm(6 GHz, EIRP)

- FCC

<26 dBm (2.4 GHz)

<26 dBm (5 GHz_1)

<26 dBm (5 GHz_2)

<25 dBm (6 GHz)

Multi-SSID: 32(8 on each band)

Management

Omada App: Yes
Centralized Management:
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller

Cloud Access: Yes, through OC300, OC200, Omada Software Controller, Omada Cloud-Based Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Yes
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

Others

Certification: CE, FCC, RoHS, IC
Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
