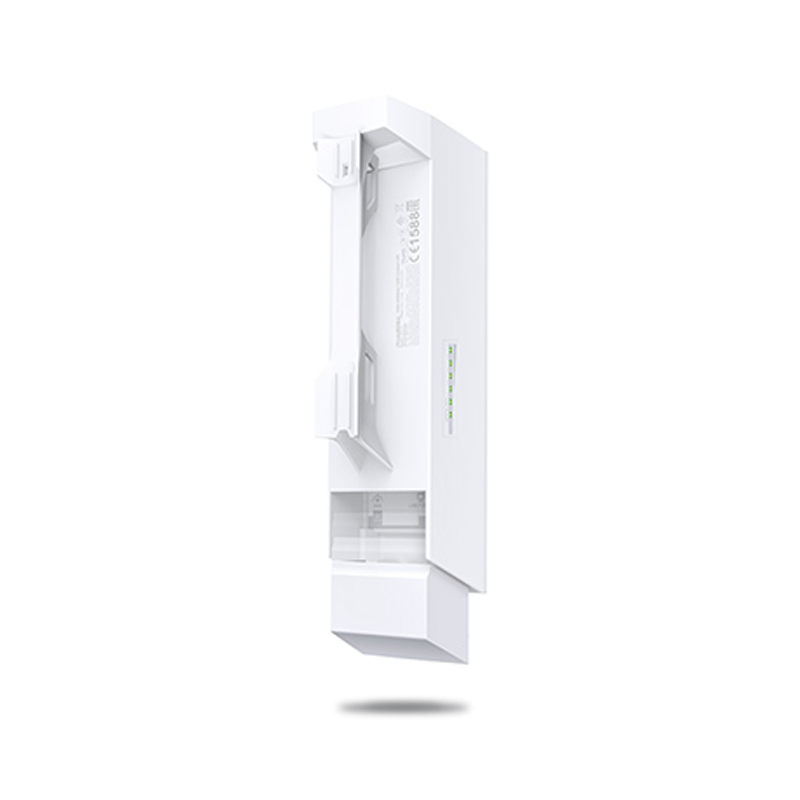

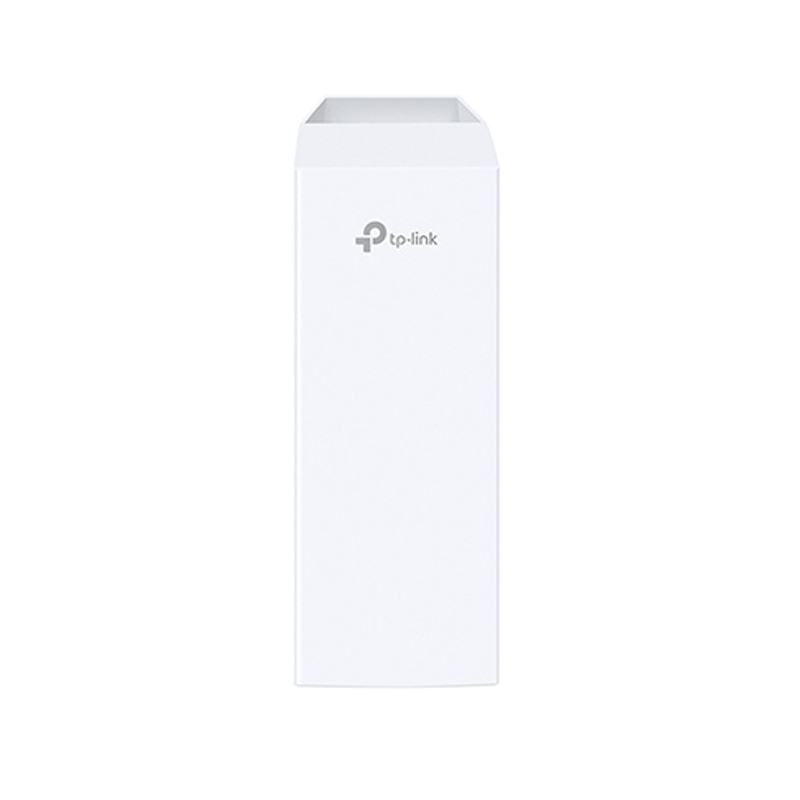

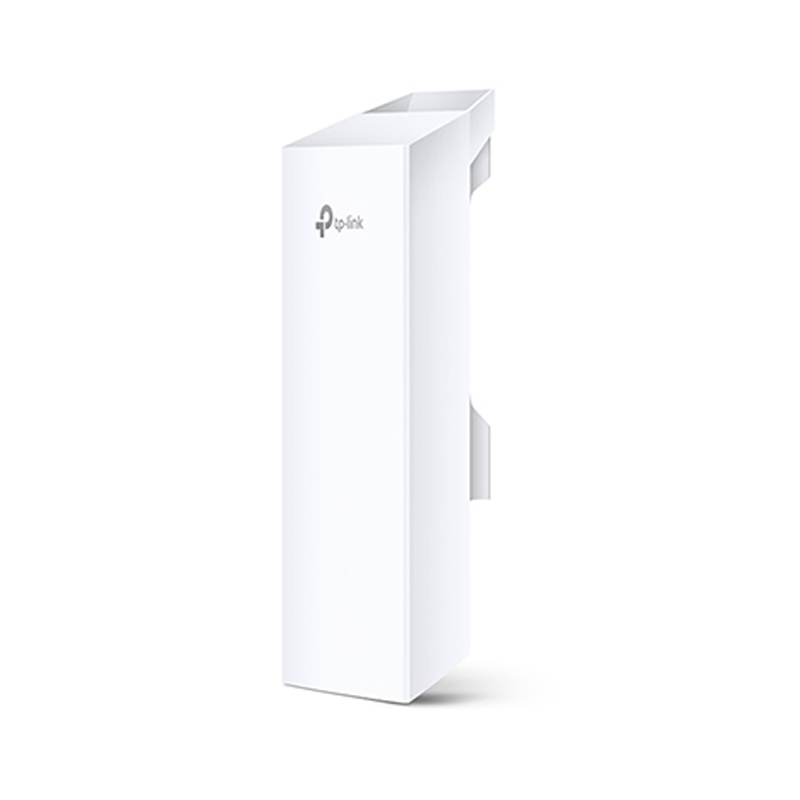

About Tplink CPE510 Outdoor Access Point

  • Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 26dBm/200mw
  • System-level optimizations for more than 15km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System – Pharos Control
  • AP / Client / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

About TP-Link

Discover the extensive range of TP-Link products available at Telrex. Known for their reliability and innovative technology, TP-Link offers a variety of networking and IT solutions to meet all your connectivity needs. From routers and switches to range extenders and adapters, TP-Link ensures seamless and efficient networking for both home and business environments.

Hardware Features

  • Processor: Qualcomm Atheros 560MHz CPU
  • Memory: 64MB DDR2 RAM, 8MB Flash

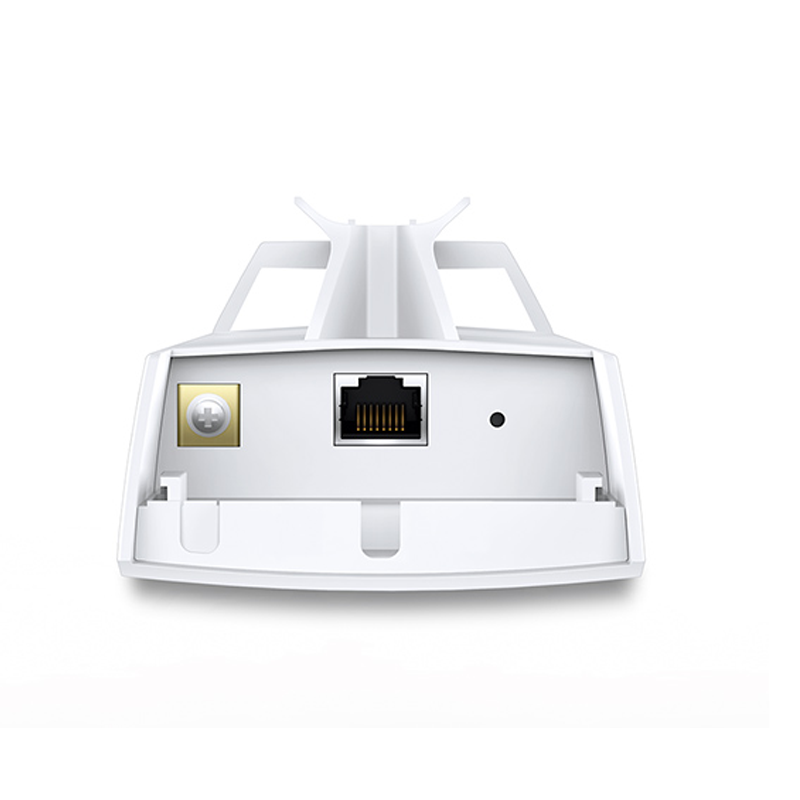

  • Interface:
    • 1 x 10/100Mbps Ethernet Port (Passive PoE)
    • Grounding Terminal, Reset Button
  • Power Supply: Passive PoE (16-27VDC, 10.5W max)
  • Dimensions: 8.8 x 3.1 x 2.4 in
  • Antenna: Built-in 13dBi dual-polarized directional antenna
  • Protection: 15KV ESD, 6KV lightning protection, IPX5 waterproof

Wireless Features

  • Standards: IEEE 802.11a/n
  • Speeds: Up to 300Mbps (40MHz)
  • Frequency: 5.15–5.85GHz
  • Transmission Power: 23dBm (adjustable)

Software Features

  • Wireless Configurations: Pharos MAXtream TDMA, automatic channel selection, security options (WPA/WPA2)
  • Management: Remote management via Pharos Control, web-based management, system monitoring tools

PoE Adapter Features

  • Dimensions: 4.3 x 2.2 x 1.3 in
  • Input/Output: 100-240VAC input, 24VDC output
  • Efficiency: >80%

Additional Information

  • Certifications: FCC, RoHS, IPX5
  • Operating Conditions: -30°C to 70°C, 10% to 90% humidity



SKU CPE510
MPN NWTL-CPE510
Brand TP-Link
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3

3 Year Warranty
