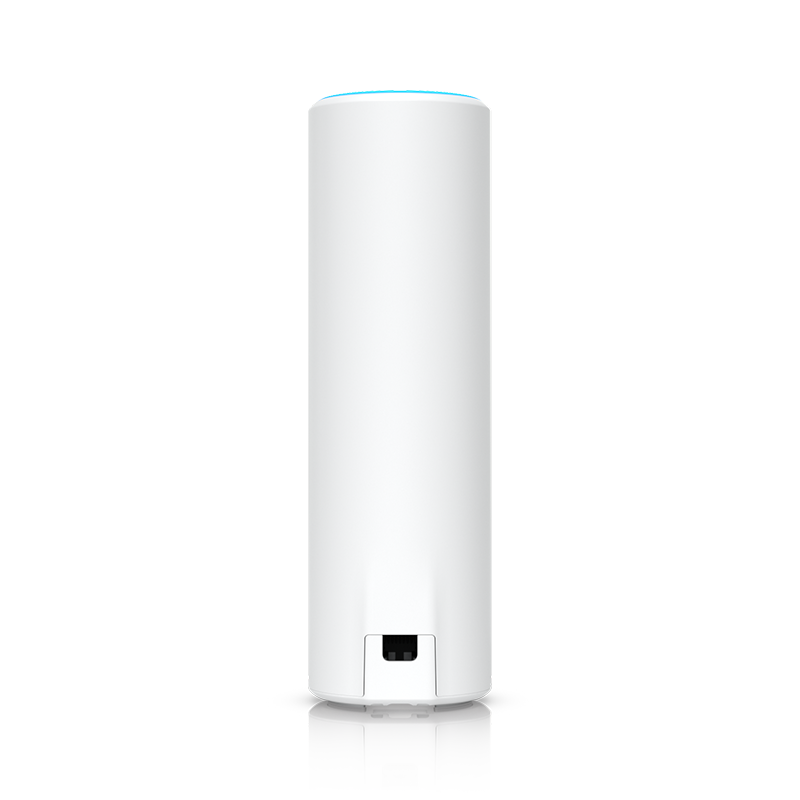

About Ubiquiti Unifi Wifi6 Mesh AP
Sleek, indoor/outdoor WiFi 6 AP with 6 spatial streams designed for mesh applications.
- High-efficiency 4x4 WiFi 6 (802.11ax)
- 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2x2 MIMO) band with a 573.5 throughput rate
- Operates at full 4x4 MIMO with 160 MHz bandwidth
- Powered with 802.3af PoE (PoE adapter included)
Mechanical
Dimensions: Ø48.5 x 159.5 mm (Ø1.9 x 6.3")
Weight: 400 g (14.1 oz)
Enclosure Material: Polycarbonate, aluminum
Mount Material: Polycarbonate
Weatherproofing: IPX5
Hardware
Networking Interface: (1) GbE RJ45 port
Management Interface: Ethernet, Bluetooth
Power Method: PoE
Power Supply: UniFi PoE switch or included 48V, 0.32A PoE adapter
Supported Voltage Range: 44—57V DC
Max Power Consumption: 13W
Max TX Power:
2.4 GHz: 22 dBm
5 GHz: 26 dBm
MIMO:
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
Max Data Rate:
2.4 GHz: 573.5 Mbps (BW40)
5 GHz: 4.8 Gbps (BW160)
Antenna Gain:
2.4 GHz: 3 dBi
5 GHz: 5 dBi
LEDs: White/blue
Button: Factory reset
Mounting: Wall, desktop, pole (included); ceiling (optional)
Operating Temperature: -30 to 60°C (-22 to 140°F)
Operating Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC
Software
WiFi Standards: 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest Traffic Isolation: Supported
Concurrent Clients: 300+
Zero Wait DFS: Yes (supported with upcoming firmware)
Supported Data Rates:
802.11a: 6 to 54 Mbps
802.11b: 1 to 11 Mbps
802.11g: 6 to 54 Mbps
802.11n: 6.5 Mbps to 600 Mbps
802.11ac: 6.5 Mbps to 3.4 Gbps
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps
Application Requirements
UniFi Network Version: 6.2.51 and later
SKU | U6-Mesh |
MPN | NHU-U6-MESH |
Brand | UBIQUITI |
Shipping Weight | 2.0000kg |
Shipping Width | 0.120m |
Shipping Height | 0.100m |
Shipping Length | 0.180m |
Shipping Cubic | 0.001000000m3 |
Unit Of Measure | ea |
1 Year Warranty
Need more information or assistance with this product?
Contact us on 1300 665 970 or complete an online enquiry and one of our staff members will get back to you as soon as possible.
SKU: U6-Mesh • MPN: NHU-U6-MESH
