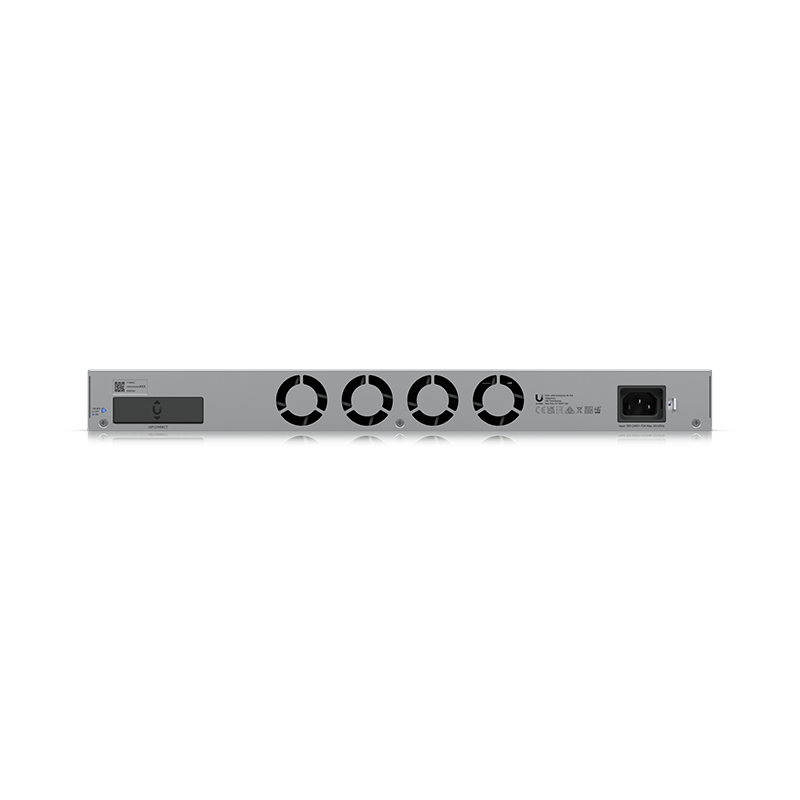

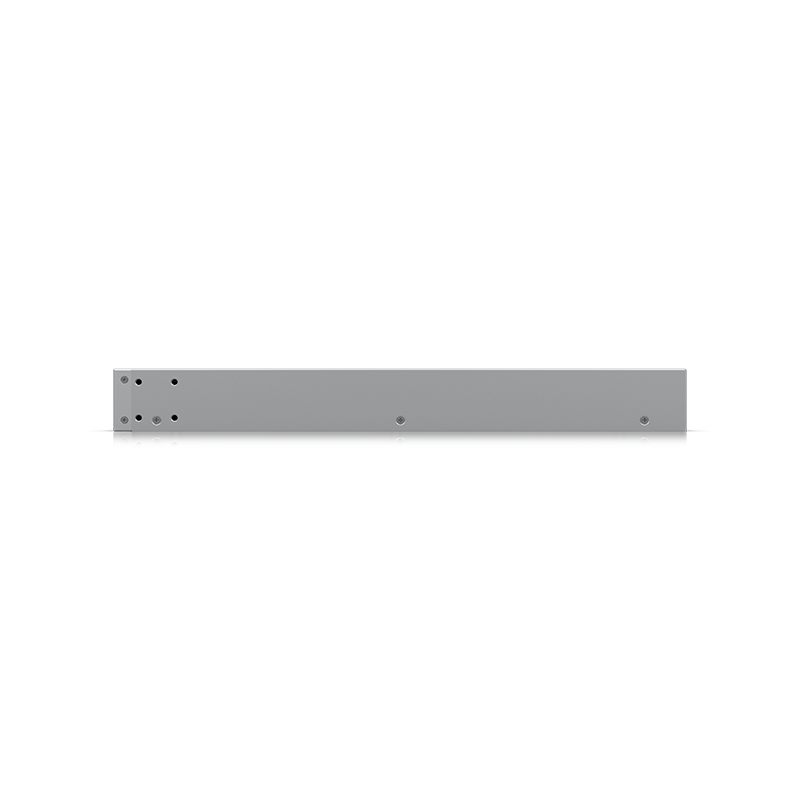

About Ubiquiti USW-Pro-Max-16-PoE-AU UniFi 16 Port 180W

Ubiquiti Unifi  16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

(4) 2.5 GbE PoE++ ports

(12) GbE PoE+ ports

(2) 10G SFP+ ports

180W total PoE availability

Versatile desktop, wall, and rack** mounting

Silent, fanless cooling system



Technical Specifications

Mechanical
Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight 2.1 kg (4.6 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (12) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 42 Gbps
Switching capacity 84 Gbps
Forwarding rate 62.496 Mpps
Power method DC adapter
Power supply 54V, 210W
Max. power consumption 30W (Excluding PoE output)
Total available PoE 180W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+/PoE++: 50—57V
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
SKU USW-Pro-Max-16-PoE
MPN USW-Pro-Max-16-PoE
Brand Ubiquiti
Shipping Weight 3.0000kg
Shipping Width 0.320m
Shipping Height 0.220m
Shipping Length 0.016m
Shipping Cubic 0.001126400m3
Unit Of Measure ea
