Camera:

• Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
• Day/Night Mechanism: IR Cut Filter, Unified/Scheduled/Auto switch

Lens:

• Type: Fixed Focal Lens
• Focal Length: 2.8/4 mm
• Aperture: F1.6
• Field of View (FOV):
  • 2.8 mm: Horizontal 111.4°, Vertical 58.8°, Diagonal 134°
  • 4 mm: Horizontal 88°, Vertical 46°, Diagonal 105.4°
• DORI Distance:
  • 2.8 mm: Detect 64 m, Observe 27 m, Recognize 13 m, Identify 6 m
  • 4 mm: Detect 80 m, Observe 33 m, Recognize 16 m, Identify 8 m

Illuminator:

• IR LED: 4 LEDs, 30m range, 850nm wavelength
• White LED: 4 LEDs, 30m range

Video:

• Max. Resolution: 2880 x 1620
• Main Stream Frame Rate: 1-30 fps (60Hz), 1-25 fps (50Hz)
• Sub-Stream Frame Rate: 1-30 fps (60Hz), 1-25 fps (50Hz)
• Video Compression: H.265+/H.265/H.264+/H.264

Image:

• Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, etc.
• Wide Dynamic Range: 120 dB
• Privacy Mask: Up to 4 masks

Audio:

• Two-Way Audio: Yes
• Audio Compression: Yes
• Noise Filtering: Yes

Network:

• Protocol: TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
• ONVIF: Yes

Alarm and Event Management:

• Smart Events: Intrusion Detection, Line-Crossing Detection, etc.
• Basic Events: Motion Detection, Video Tampering Detection, etc.

Interfaces:

• Network Interface: 1 RJ45 10/100M Ethernet Port, PoE
• On-board Storage: MicroSD Card up to 512 GB

General:

• Operating Temperature: -30–60 °C
• Protection: IP67
• Power Supply: 12V DC or PoE



3 Year Warranty

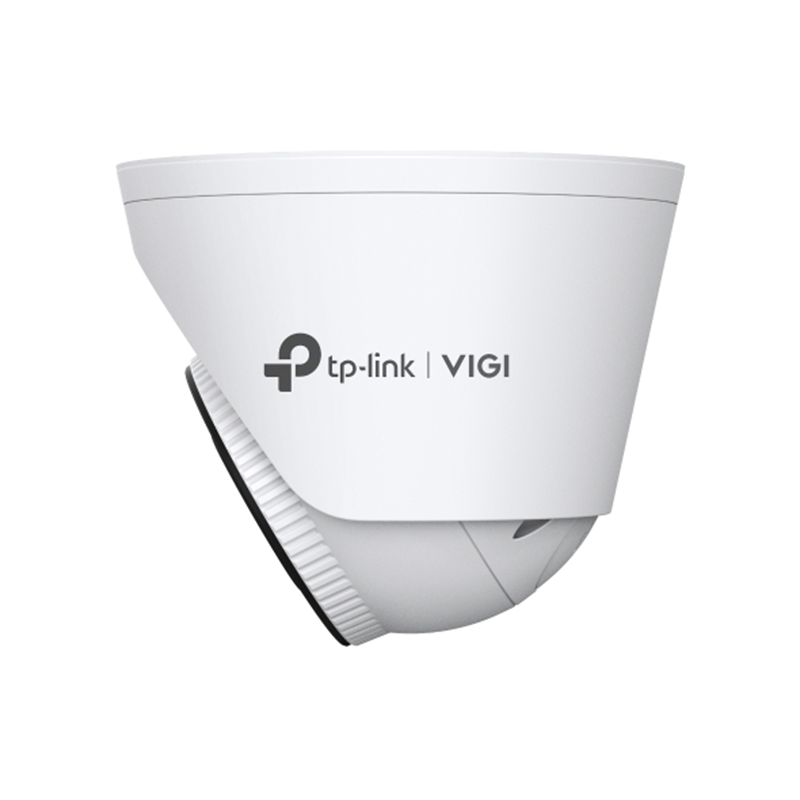

Download brochure for TP-Link VIGI 5MP Full-Color Turret Network Camera
